Airforce
Airforce VIS Boxy No Drop
Model VIS BOXY · Article CCVISW90003
Linear professional-look wall hood with No-Drop system and stainless steel baffle filters.
Size
Version
VIS Boxy 90 cm stainless steel · Vis Boxy IX/A/90
€2,400
Availability on request
- Width
- 90 cm
- Hood type
- Wall
- Extraction rate (IEC)
- 800 m³/h
- Delivery
- Cyprus-wide — see options
Overview
Linear professional-look wall hood with No-Drop system and stainless steel baffle filters.
Key features
Washable Filters
Baffle Filters
No-Drop System
No-Drop system with stainless steel baffle filters.
Energy Class
Specifications
Dimensions
- Width
- 90 cm
Design
- Colour
- Stainless steel
- Lighting
- 90 cm: 4,8 W Strip Led 4000K 107 Lux; 120 cm: 9 W Strip Led 4000K 213 Lux
General
- Control type
- Electronic rotary control
- Hood type
- Wall
Energy
- Energy class
- A++
Extraction
- Extraction rate (IEC)
- 800 m³/h
- Filter type
- Stainless steel baffle filters
- Noise level
- 44/62/70
- Total absorption
- 90 cm: 179,8 W; 120 cm: 184 W
Installation
- Min. distance from hob
- Electric hob 50 cm; gas hob 65 cm
Dimensions
- Width
- 90 cm
- Summary
- Available in 90 cm and 120 cm widths
Installation
Wall mounted. Minimum distance from the hob: 50 cm above an electric hob, 65 cm above a gas hob.
Energy information
- Energy class
- A++

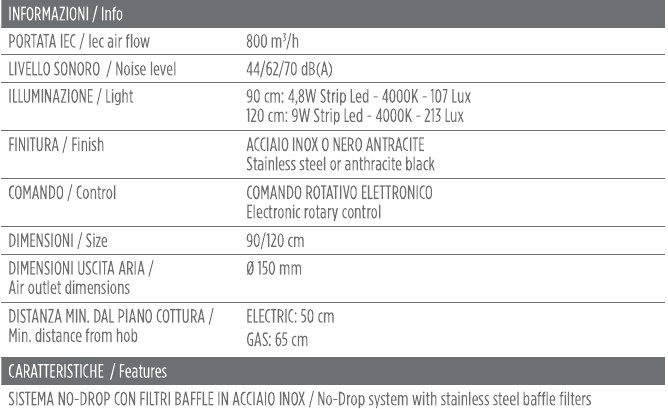

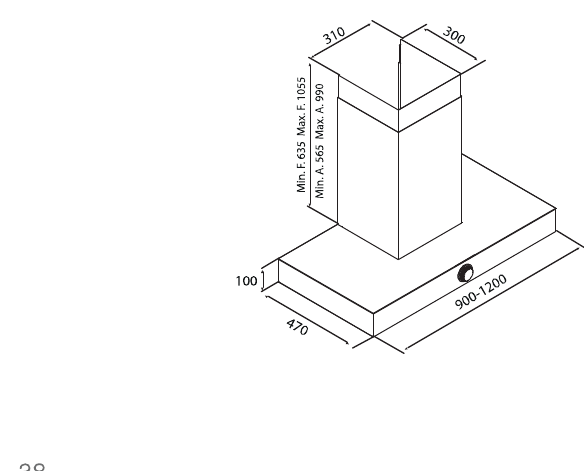

Technical drawing and key information
