Airforce
Q-BIC
Wall-mounted extractor hood, 90, 120 cm.
Size
Q-BIC AN/-/90 · Q-BIC AN/-/90
€2,008
Available to order
- Hood type
- Wall
- Width
- 90 cm
- Extraction rate (IEC)
- 655 m³/h
- Delivery
- Cyprus-wide — see options
Overview
Side shelves in dark glass and upper support surface.
Key features
Remote Control
Specifications
General
- Control type
- Remote control
- Hood type
- Wall
Dimensions
- Width
- 90 cm
Extraction
- Air outlet dimensions
- Ø 150 mm
- Extraction rate (IEC)
- 655 m³/h
- Noise level
- 47/59/63 dB(A)
Design
- Lighting
- 90 cm: 4,8W Strip Led - 4000K - 97 Lux; 120 cm: 9W Strip Led - 4000K - 213 Lux
Installation
- Min. distance from hob
- Electric hob: 50 cm; gas hob: 65 cm
Dimensions
- Width
- 90 cm
- Summary
- 90/120 cm
Installation
Minimum distance from hob: electric hob 50 cm; gas hob 65 cm.

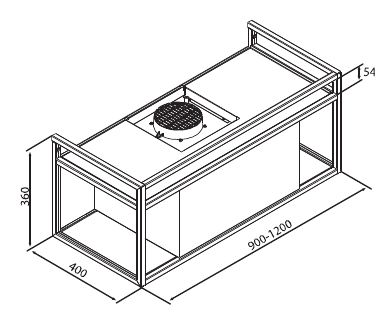

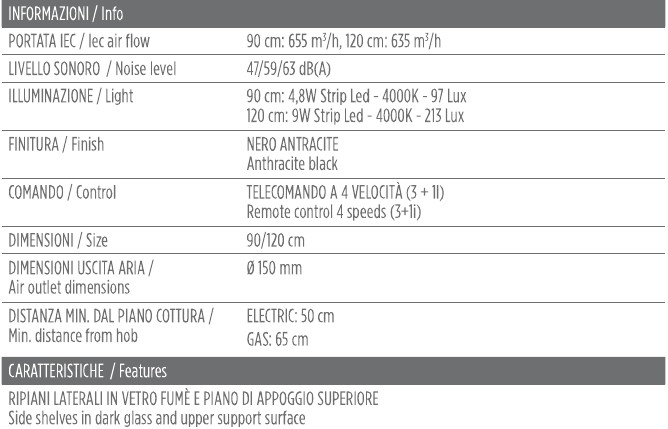

Technical drawing and key information
