Airforce
Modulo Plus
Built-in extractor hood, 52, 72 cm.
Size
Version
MODULO PLUS IX/A/52 · MODULO PLUS IX/A/52
€1,084
Available to order
- Hood type
- Built-in
- Width
- 52
- Extraction rate (IEC)
- 625 m³/h
- Delivery
- Cyprus-wide — see options
Overview
Built-in extractor hood, 52, 72 cm.
Specifications
General
- Control type
- Push button
- Hood type
- Built-in
Dimensions
- Width
- 52
Extraction
- Air outlet dimensions
- Ø 150 mm
- Extraction rate (IEC)
- 625 m³/h
- Noise level
- 49/59/65 dB(A)
Design
- Lighting
- 2x2,1W Led - 3500K - 210 Lux
Installation
- Cut-out
- 52 CM: 494X262 mm | 72 CM: 694X262 mm
- Min. distance from hob
- Electric hob: 50 cm; gas hob: 55 cm
Dimensions
- Width
- 52 cm
- Summary
- 52/72 cm
Installation
Minimum distance from hob: electric hob 50 cm; gas hob 55 cm. Cut-out: 52 CM: 494X262 mm | 72 CM: 694X262 mm.

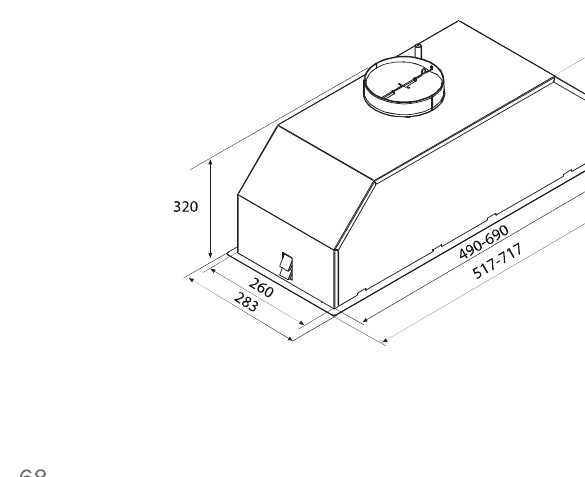

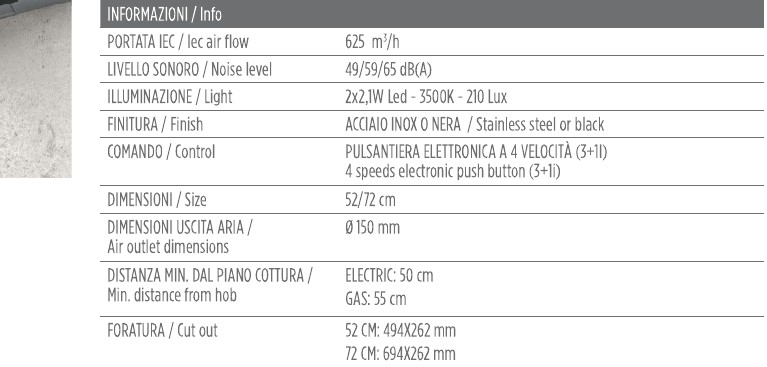

Technical drawing and key information
