Airforce
Invisia

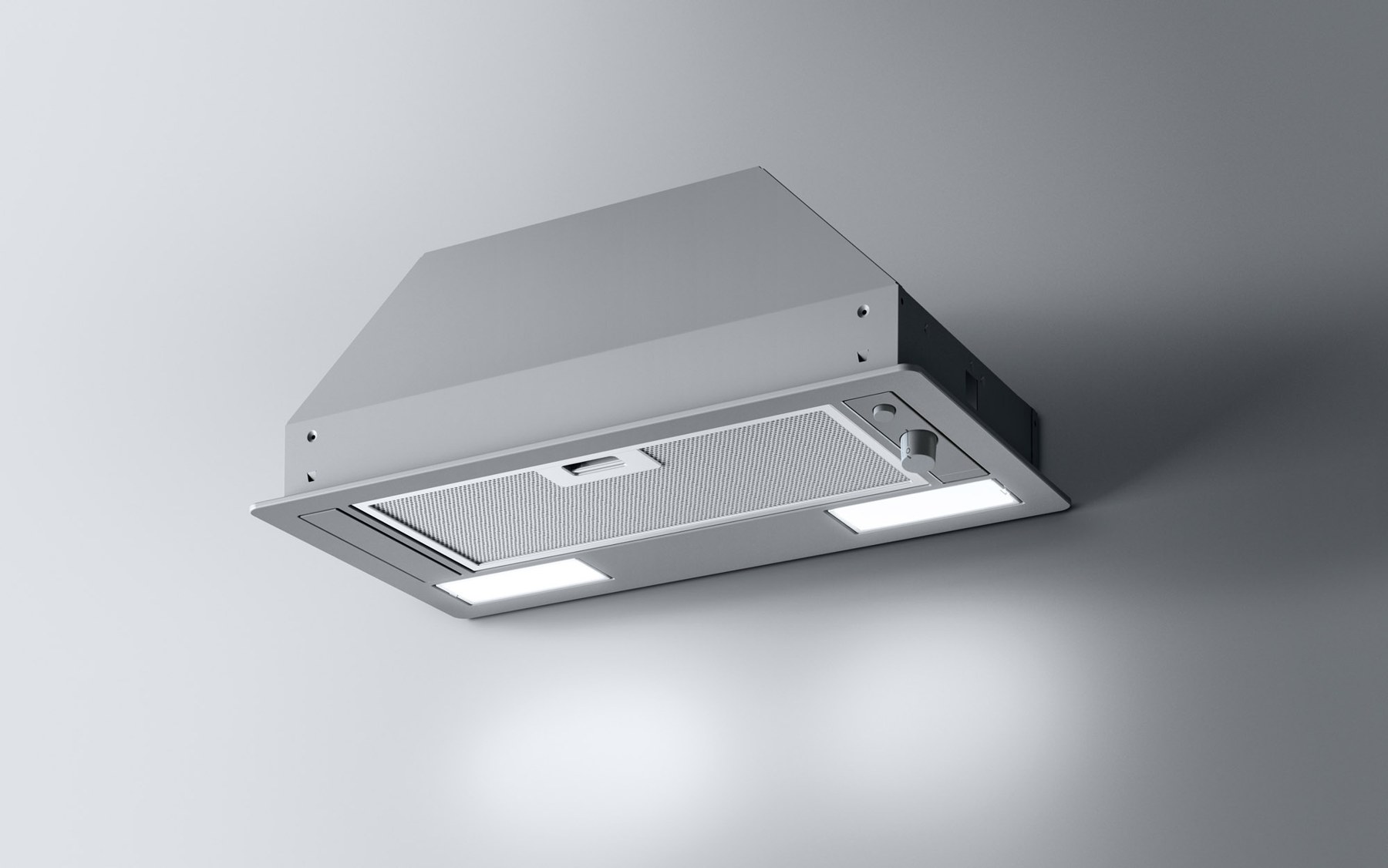

Built-in extractor hood, 52, 72 cm.
Size
INVISIA IX/A/52 · INVISIA IX/A/52
€400
Available to order
- Hood type
- Built-in
- Width
- 52
- Extraction rate (IEC)
- 425 m³/h
- Delivery
- Cyprus-wide — see options
Overview
Built-in extractor hood, 52, 72 cm.
Specifications
General
- Control type
- Electronic rotary control
- Hood type
- Built-in
Dimensions
- Width
- 52
Extraction
- Air outlet dimensions
- Ø 120 mm
- Extraction rate (IEC)
- 425 m³/h
- Noise level
- 56/69 dB(A)
Design
- Colour
- Stainless steel
- Lighting
- 2x3W led - 2700K - 73 Lux
Installation
- Cut-out
- 52 cm: 495X260 mm | 72 cm: 695X260 mm
- Min. distance from hob
- Electric hob: 50 cm; gas hob: 65 cm
Dimensions
- Width
- 52 cm
- Summary
- 52/72 cm
Installation
Minimum distance from hob: electric hob 50 cm; gas hob 65 cm. Cut-out: 52 cm: 495X260 mm | 72 cm: 695X260 mm.

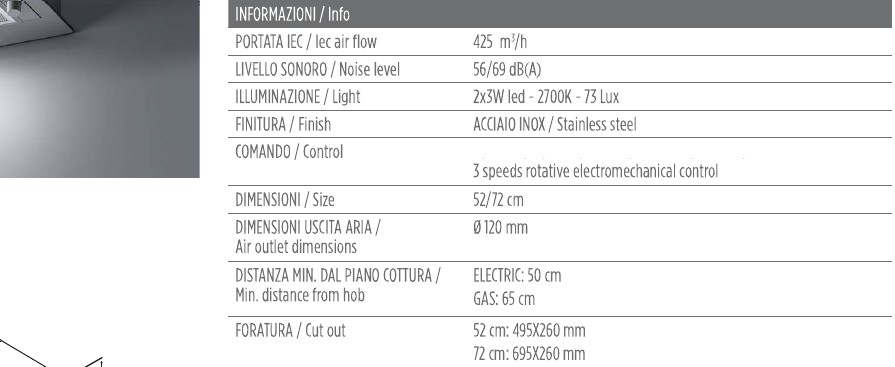

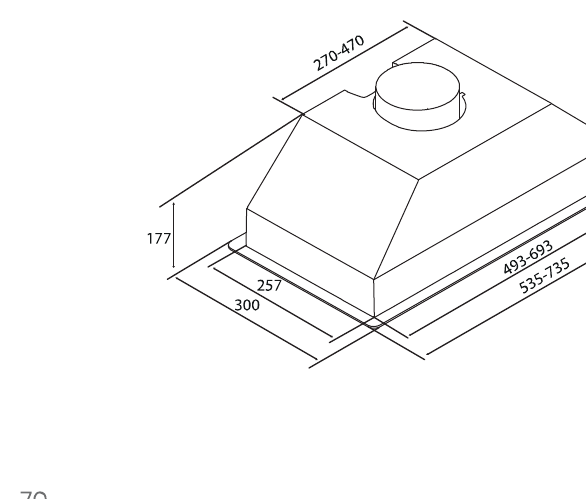

Technical drawing and key information
